YCS Dashboard description - REPEATER

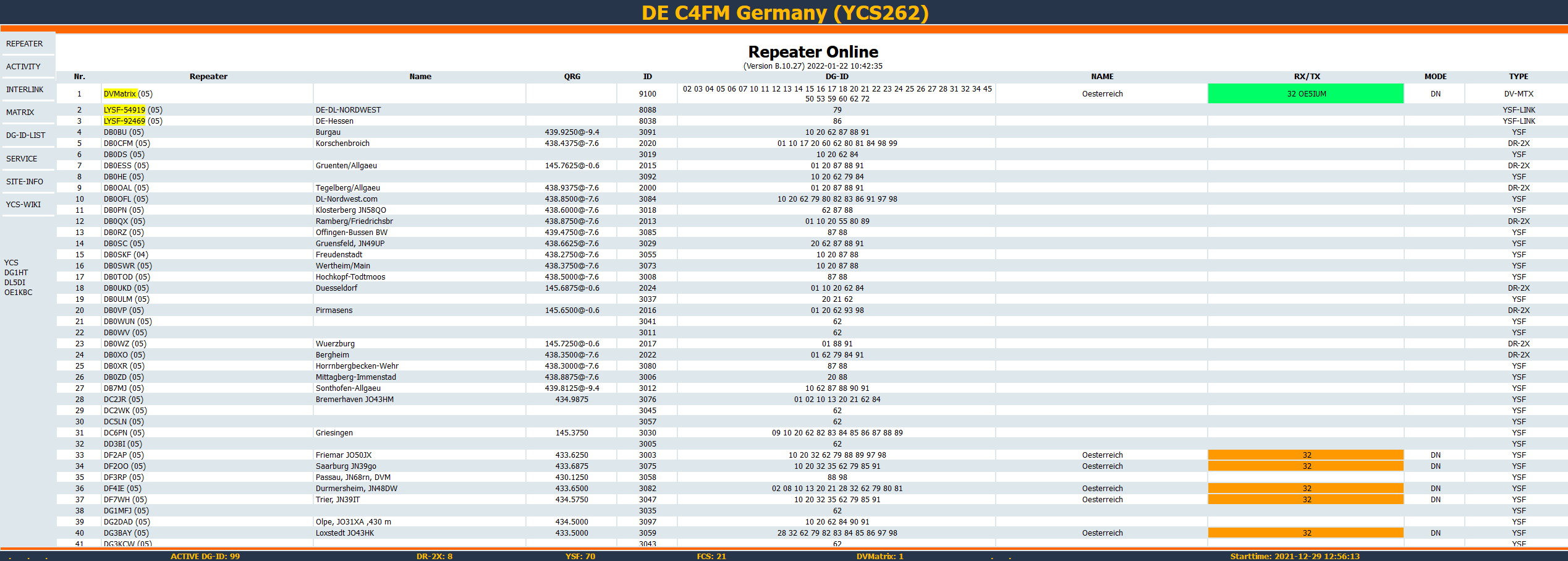

This is the main page of the dashboard and shows a detailed overview of all connected clients and activities in real time.
The table columns contain the following content:
| Column | Description | Notice |
|---|---|---|
| Nr. | Table row number | |
| Repeater | Client call sign Interlink | callsign (5) ⇒ heartbeat counter FCSXXXxx-callsign ⇒ Client using FCS-Protocol (xx = connection DG-ID) FCSXXXxx-number ⇒ IPSCLink (xx = DG-ID; number = IPSC-Identifier) LYSF-XXXXX ⇒ YSFLink (XXXXX = YSF Identifier) |
| Name | Client QTH YSF-Name (Interlink) IPSC2-Name (Interlink) | IPSC2-Name (x/XX) ⇒ x = Timeslot / XX = Talkgroup |
| QRG | Client QRG and frequency offset | |
| ID | Client ID | assigned by server |
| DG-ID | booked DG-ID's (statically) booked DG-ID's (on-demand) | highlighted in yellow (with expiry timer) ⇒ activated by user |
| Name | assigned name of used DG-ID | |
| RX/TX | currently active DG-ID | highlighted in green ⇒ source highlighted in orange ⇒ destination highlighted in blue ⇒ DG-ID Hangtimer (30sec) |
| Mode | DN / VW | Only use DN-Mode (uses error correction and routing information) |
| TYPE | Client Protocol Type | DV-MTX ⇒ DVMatrix YSF ⇒ YSF-Protocol FCS ⇒ FCS-Protocol DR-2X ⇒ IMRS YSF-LINK ⇒ YSF-Interlink |
