YCS Dashboard description - INTERLINK

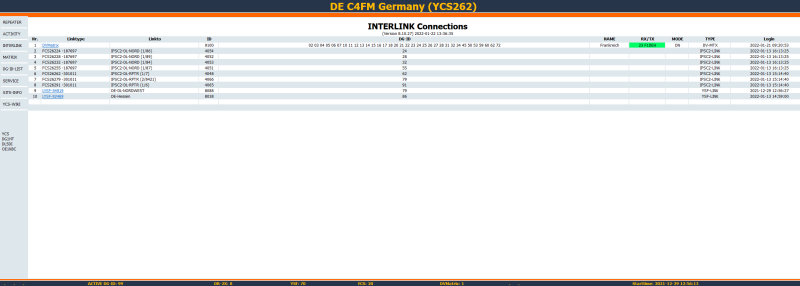

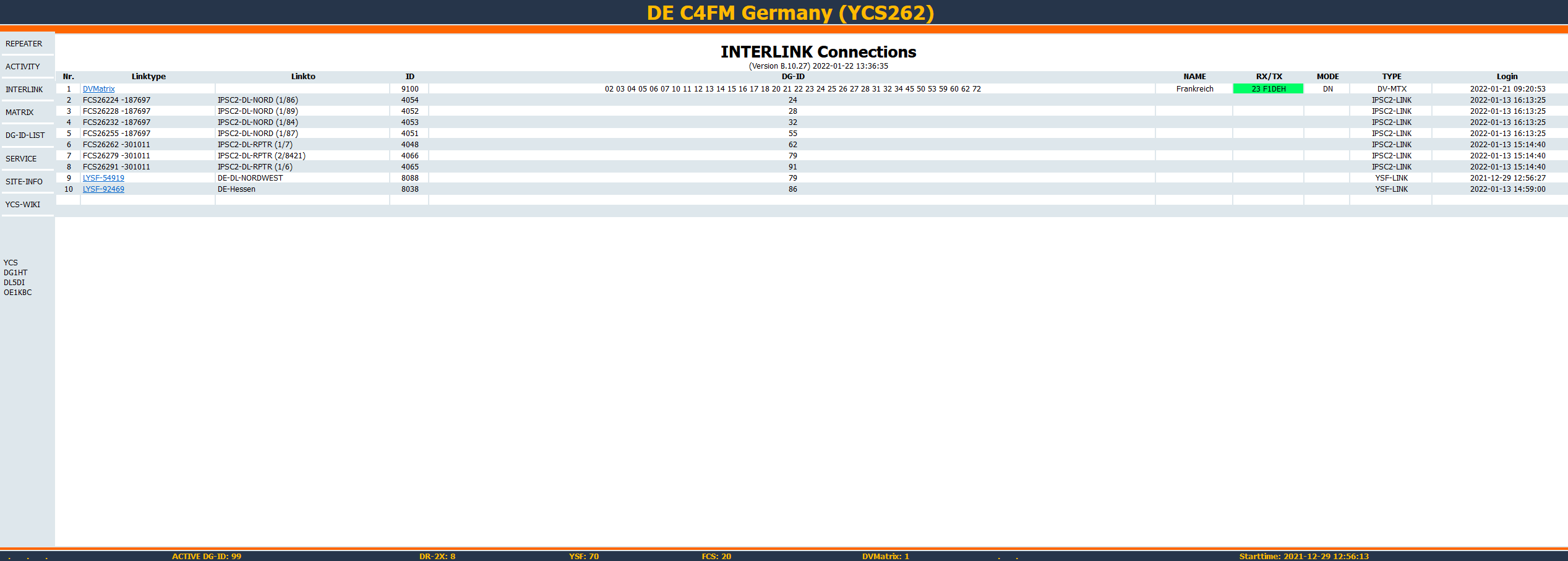

This page shows the active interlinks of the YCS server.
The table columns contain the following content:
| Column | Description | Notice |
|---|---|---|
| Nr. | Table row number | |
| Linktype | Type of Interlink | DVMatrix ⇒ world-wide DVMatrix-Routing FCSXXXxx-number ⇒ IPSCLink (xx = DG-ID; number = IPSC-Identifier) LYSF-XXXXX ⇒ YSFLink (XXXXX = YSF Identifier) |
| Linkto | Interlink-Destination | YSF-Name IPSC2-Name (x/XX) ⇒ x = Timeslot / XX = Talkgroup |
| ID | Interlink-ID | assigned by server |
| DG-ID | DG-ID's linked | |
| NAME | assigned name of active DG-ID | |
| RX/TX | currently active DG-ID | highlighted in green ⇒ source highlighted in orange ⇒ destination highlighted in blue ⇒ DG-ID Hangtimer |
| MODE | DN / VW | |
| TYPE | Interlink Protocol Type | DV-MTX ⇒ DVMatrix YSF-Link ⇒ YSF-Interlink IPSC2-Link ⇒ IPSC2-Interlink |
| Login | Date + Time |
