YCS Dashboard description - SERVICE

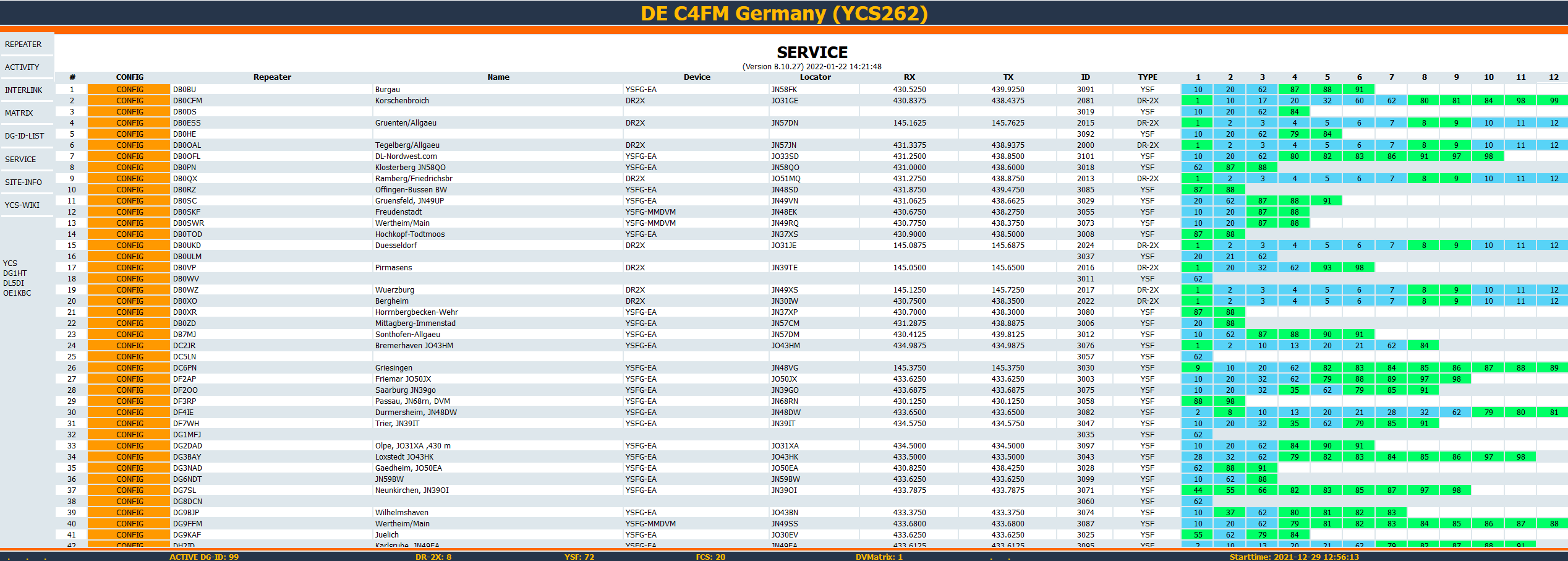

This page shows various information about the connected clients
The table columns contain the following content:
| Column | Description | Notice |
|---|---|---|
| # | Table row number | |
| CONFIG | ||
| Repeater | Client call sign | callsign (5) ⇒ heartbeat counter FCSXXXxx-callsign ⇒ Client using FCS-Protocol (xx = connection DG-ID) FCSXXXxx-number ⇒ IPSCLink (xx = DG-ID; number = IPSC-Identifier) |
| Name | Client QTH IPSC2-Name (Interlink) | sent by the client when connected IPSC2-Name (x/XX) ⇒ x = Timeslot / XX = Talkgroup |
| Device | Software / Hardware | sent by the client when connected |
| Locator | QTH-Locator | sent by the client when connected |
| RX | RX Frequency | sent by the client when connected |
| TX | TX Frequency | sent by the client when connected |
| ID | Client ID | assigned by server |
| TYPE | Client Protocol Type | YSF ⇒ YSF-Protocol FCS ⇒ FCS-Protocol DR-2X ⇒ IMRS |
| 1,2,3,… | booked DG-ID by Client | highlighted in blue ⇒ booked DG-ID (also routed to other YCS-Server by DVMatrix) highlighted in green ⇒ booked DG-ID |
